Pre-designed Home
Blue Jay
![Timberlyne Blue Jay Main Floor Plan A](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-BlueJay-Main-Floor-Plan-A.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=922&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Blue Jay Loft Floor Plan A](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-BlueJay-Loft-Floor-Plan-A.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=1257&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Blue Jay Main Floor Plan B](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-BlueJay-Main-Floor-Plan-B.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=968&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Blue Jay Loft Floor Plan B](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-BlueJay-Loft-Floor-Plan-B.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=1372&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Bluejay Cabin Timber Frame Home Bents](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Bluejay-Cabin-Timber-Frame-Home-Bents.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=530&ixlib=php-3.3.1&q=82&w=1200)

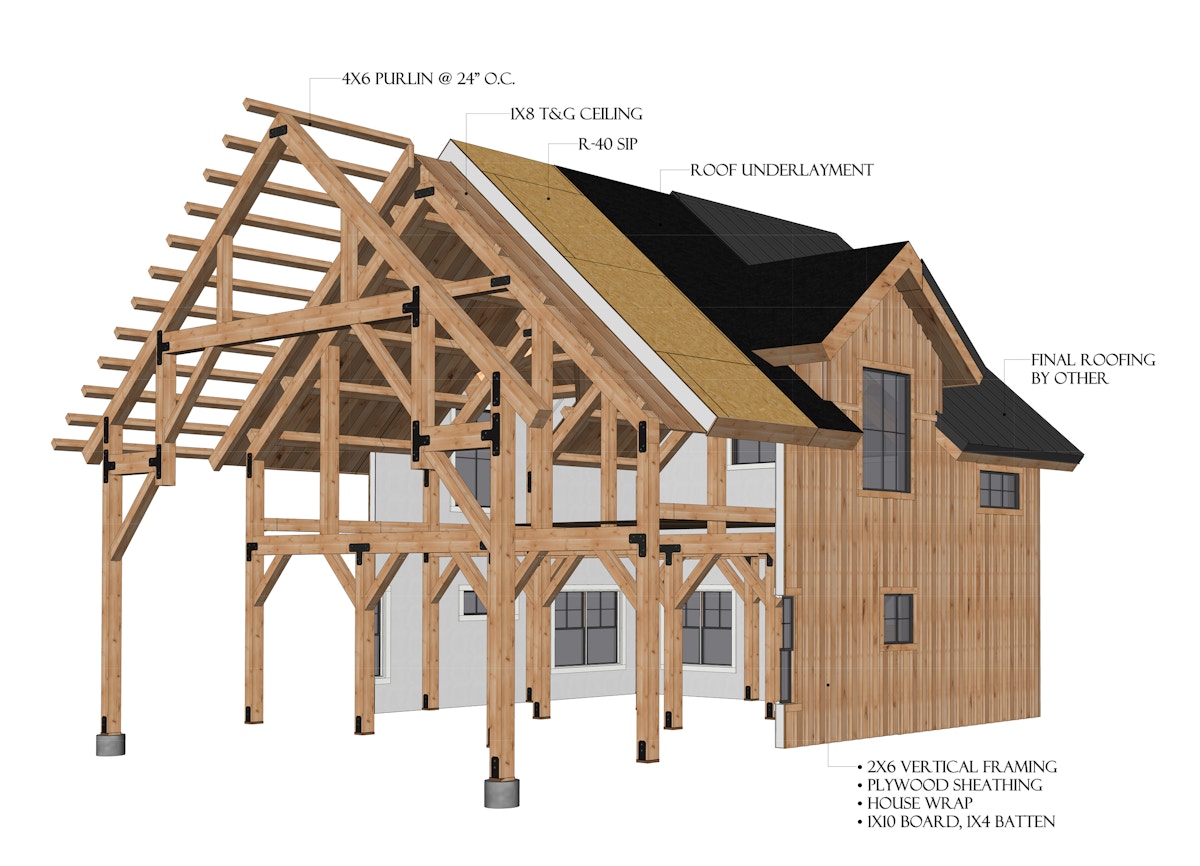

![Timberlyne Bluejay Cabin Timber Frame Home Cutout](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Bluejay-Cabin-Timber-Frame-Home-Cutout.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=866&ixlib=php-3.3.1&q=82&w=1200)
1360 Sq.Ft. Home
30'x30' Cabin
Post & Beam Package: $121,545
Select A Design > Customize The Plan > Build Your Dream
- Shipping, engineering, sales tax not included.
- Prices subject to change.
- Shown with optional timber porch.
- Floor plan B is an alternate plan. Door and window placement may not match renderings.
Package Overview
Energy Efficient. Bigger Timbers. Flexible Designs.
- 1 Bedroom, 1 Bathroom
- 900 sq. ft. Main Floor
- 460 sq. ft. Loft
- 240 sq. ft. Covered Porch
- 8x8 (and larger) post and beam frame with steel plate joinery
- Timbers precision cut with state-of-the-art CNC machine
- Design revisions (Add length, swap accessories, change floor plan)
- Pre-cut jumbo R-42 SIPs for energy efficiency and quicker install
- Superior sealed enclosure with exposed timbers
Standard Options
- Frame: 8x precision-cut timbers, powder-coated steel joinery
- Walls: 2x6 vertical framing, sheathing, house wrap, KD pine siding: 1x10 board, 1x4 batten
- Roof: 6x8 purlins, 1x8 T&G roof decking, roof underlayment
- Roof insulation: R-42 SIP package
- Second floor: ¾” OSB T&G subfloor, 11 7/8 TJI joists, stair package
- Porch: 6x8 purlins, 2x6 T&G roof decking, roof underlayment
- Structural building plans & foundation plans
- Construction guide and phone support
- Final roofing material, residential doors, windows
- Interior walls, wall insulation, interior finishing
- HVAC, plumbing, and electrical
- Site prep, foundation, utility hookups
- Installation
Standard Package Diagram
![Standard Package Diagram](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/Timberlyne-home-diagram_2022-08-23-160825.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=900&ixlib=php-3.3.1&q=82&usm=20&w=1600)
