Pre-designed Home
Hogan

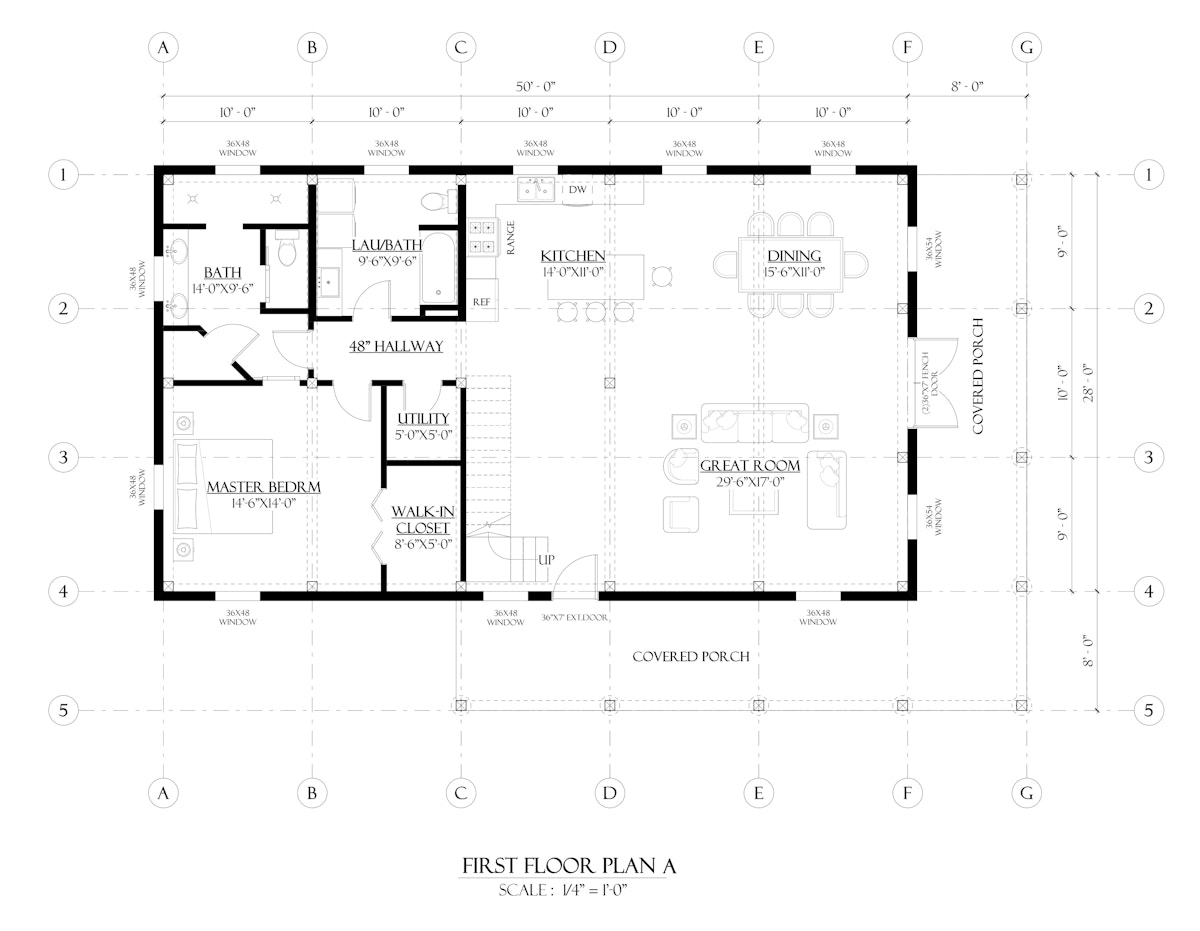

![Timberlyne Hogan Timber Frame Home Main Floor Plan A](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Timber-Frame-Home-Main-Floor-Plan-A.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=931&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Hogan Timber Frame Home Loft Floor Plan A](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Timber-Frame-Home-Loft-Floor-Plan-A_2022-08-10-101539.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=890&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Hogan Timber Frame Home Main Floor Plan B](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Timber-Frame-Home-Main-Floor-Plan-B.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=1032&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Hogan Timber Frame Home Loft Floor Plan B](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Timber-Frame-Home-Loft-Floor-Plan-B.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=1015&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Hogan Bents 1 2](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Bents-1-2.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=558&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Hogan Bents 3 4](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Bents-3-4.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=700&ixlib=php-3.3.1&q=82&w=1200)
![Timberlyne Hogan Timber Frame Home Cutout](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/packages/floorplans/Timberlyne-Hogan-Timber-Frame-Home-Cutout.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=788&ixlib=php-3.3.1&q=82&w=1200)
2100 Sq.Ft. Home
28'x50' Ponderosa Country Barn Home, 8' Porch
Post & Beam Package: $165,521
Select A Design > Customize The Plan > Build Your Dream
- Shipping, engineering, sales tax not included.
- Prices subject to change.
- Renderings for visual reference only. Local codes may require different timber sizes, plates, or changes to dimensions.
- Floor plan B is an alternate plan. Door and window placement may not match renderings.
Package Overview
Energy Efficient. Bigger Timbers. Flexible Designs.
- 3 bedroom, 2.5 bathroom
- 1,400 sq. ft. main floor
- 700 sq. ft. loft
- 528 sq. ft. covered porch
- 8x8 (and larger) post and beam frame with steel plate joinery
- Timbers precision cut with state-of-the-art CNC machine
- Design revisions (Add length, swap accessories, change floor plan)
- Pre-cut jumbo R-42 SIPs for energy efficiency and quicker install
- Superior sealed enclosure with exposed timbers
Standard Options
- Frame: 8x precision-cut timbers, powder-coated steel joinery
- Walls: 2x6 vertical framing, sheathing, house wrap, KD pine siding: 1x10 board, 1x4 batten
- Roof: 6x8 purlins, 1x8 T&G roof decking, roof underlayment
- Roof insulation: R-42 SIP package
- Porch: 6x8 purlins, 2x6 T&G roof decking, roof underlayment
- Second floor: ¾” OSB T&G subfloor, 11 7/8 TJI joists, stair package
- Structural building plans & foundation plans
- Construction guide and phone support
- Final roofing material, residential doors, windows
- Interior walls, wall insulation, interior finishing
- HVAC, plumbing, and electrical
- Site prep, foundation, utility hookups
- Installation
Standard Package Diagram
![Standard Package Diagram](https://timberlyne-commercial.imgix.net/timberlynecommercial/assets/Timberlyne-home-diagram_2022-08-23-160825.jpg?crop=focalpoint&domain=timberlyne-commercial.imgix.net&fit=crop&fm=pjpg&fp-x=0.5&fp-y=0.5&h=900&ixlib=php-3.3.1&q=82&usm=20&w=1600)
